MPU Board
Cables

MPU to Driver Board Cables















A1J5 TO A3J1 MPU to Driver

System 1 MPU to Driver,   Not a Referb.
 All new parts.

Part # CAGS1-A1J5
 $24.95

Enhanced Cable with 7 blocking diodes

Part # CAGS1-A1J5-E
$39.95

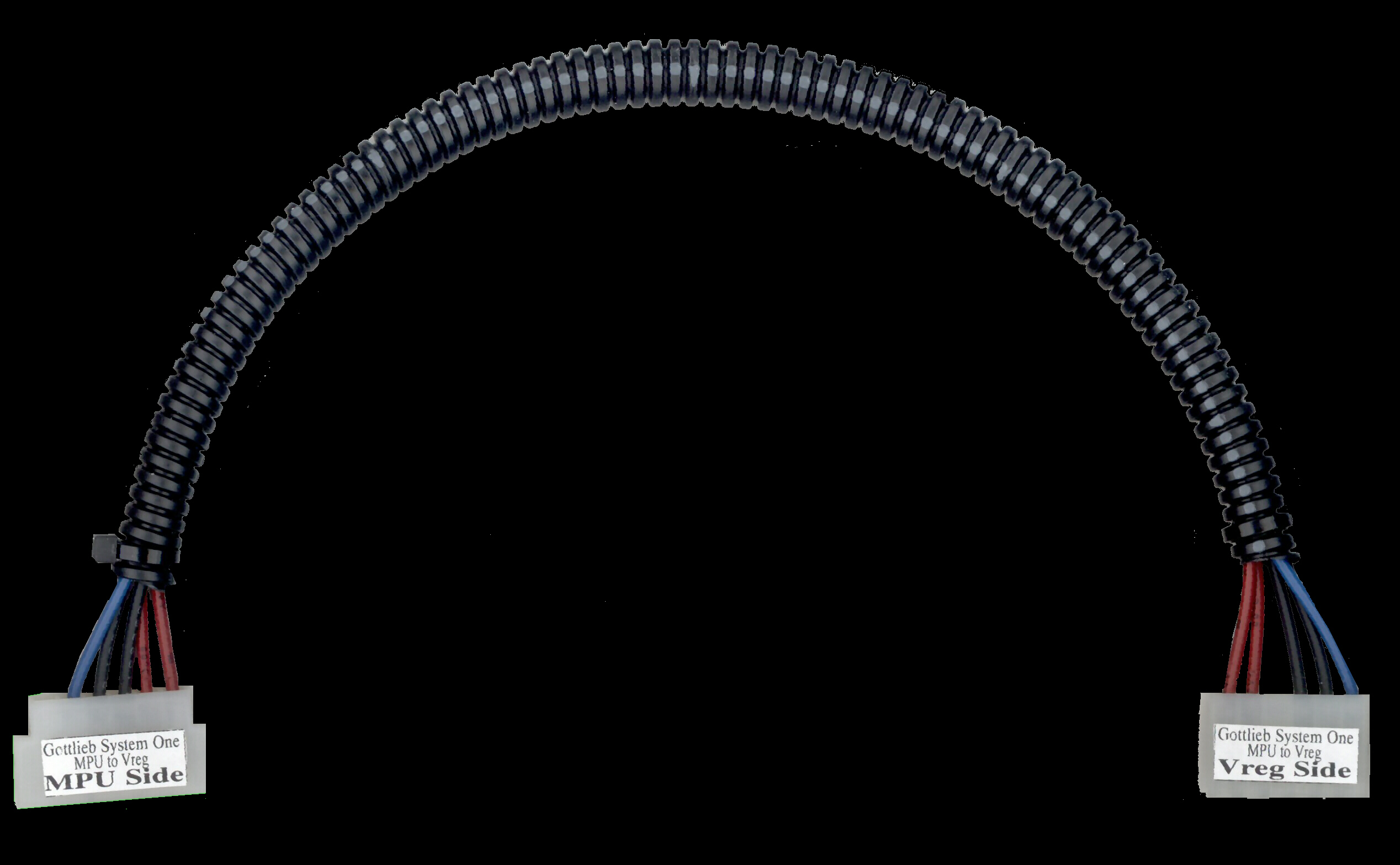

MPU to Vreg Power Cable

A1J1, MPU to Vreg Cable

System 1 MPU to VReg,    Not a Referb.
 All new parts. Uses the original System One connectors

CAGS1-A1J1-T(Tin) $7.50

CAGS1-A1J1-GNT
(W / Ground Cable) $8.50

 CAGS1-A1J1-G (Gold)
 Gold on MPU side only $12.00

CAGS1-A1J1-GNG
Ground Cable and Gold Pins (MPU) $13.00


MPU, Driver & Sound Board Connectors


Connectors with Heat Shrink Replacement Kits. GOLD flashed pins for better contacts
No crimper expensive crimper needed, Just solder and heat shrink.

Connector Description Part Number Cost
A1J2 19 Pin Gold SS COGS1-A1J2 7.50
A1J3 21 Pin Gold SS COGS1-A1J3 8.25
A1J4 17 Pin Gold SS COGS1-A1J4 6.75
A1J6 9 Pin Gold SS COGS1-A1J6 3.25
A1J7 17 Pin Gold SS COGS1-A1J7 6.75
A3J1 24 Pin Gold SS COGS1-A3J1 9.25
A3J2 7 Pin Gold SS COGS1-A3J2 2.50
A3J3 21 Pin Gold SS COGS1-A3J3 8.25
A3J4 8 Pin Gold SS COGS1-A3J4 2.75
A3J5 19 Pin Gold SS COGS1-A3J5 7.50

MPU - ELECTRONIC PARTS

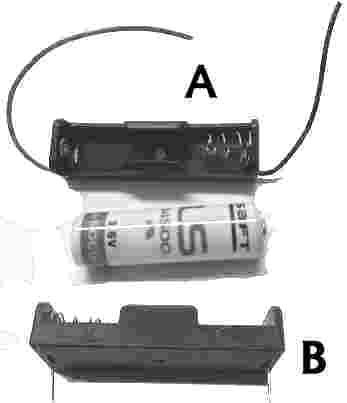

Lithium Battery Replacement Kit

Includes...

  1-Full AA size Hermitically       Sealed Battery w/ leads
       10 Year Battery !
  2-Diode to replace charging  resistor
  3-Installation Instructions.

 $9.50 Each

Part #   BAT2341-N

Nylon Stand Off

1/2 inch





0.35 Each
$3.00 for 10

NYSOW-1000 (White)
NYSOB-1000 (Lt. Brown)

3 X AA
Battery Holder


NEW
 Same Battery Holder
with 2 Pin Disconnect Plug and 12" wires, Larger Gauge on second 1/2

3AABH00     $4.00/ea.

Power Supply Rebuild Kit

Replaces all Electrolytic Capacitors and Connectors

Only $11.95

Part Number GPSK-2488

All IC's



8 bit Dip Switch $1.25



3579.545KC Crystal $1.50



50A 1000V FWBR

Stud Mount

$4.95

FWBR356S1

Replaces 25to 50 Amp.
Same case footprint better power

All Capacitors

Click Here


All Transistors

Click Here

All Diode

Click Here




Power (Vreg) Board
Cables and Connectors
Includes Header, Pins and locater Pin if applicable

    Connector Description Part Number Cost
A2J1 7 Pin Single Side COGS1-A2J1 $2.00
A2J2 6 Pin Single Side COGS1-A2J2 See
CAGS1-A1J1
A2J3 8 Pin Single Side with Locater pin COGS1-A2J3 $2.10

Other Parts
System One Pins

Max. Wire Insulation Diameter
1.65mm or .065"
Wire Sizes 22, 24, 26

 .20 each
  .175 lots of ten
.125 lots of 100
.08 lots of 1000

 Order # 77-2525

System One Pins



Max. Wire Insulation Diameter
2.79mm or .110"
Wire Sizes 18, 20, 22, 24

.20 each
.175 lots of ten
.125 lots of 100
.08 lots of 1000

Order # 77-2574

Molex Crimp Tool

 Crimps most all common open barrel pins

Will crimp all pins shown on this page.

Sold Out        Order # CT56-1000







Economy pin remover
Easily Removes #77-2553 pins from header

Part Number # 99-2553

$2.50

SILICON OIL W / DISPENSER

This stuff is so slick it has a warning on the bottle.
So it will work great on your games and vending equipment.
3 ml of the finest Silicon oil in an easy to dispense syringe

CHEM-25-335

Only $3.95 a tube

Get 10 for only $2.50 each, save over 35%

Pictures are for reference only. Color and style may vary.
All COG and CAG parts are made to order and may delay the shiping time depending on manufacturing delays.
